Performance
Initial tensile adhesion strength: ≥ 0.5 N / mm2 (TS EN 1348)
Tensile adhesion strength after immersion in water: ≥ 0.5 N / mm2 (TS EN 1348)
Tensile adhesion strength after heat aging: ≥ 0.5 N / mm2 (TS EN 1348)
Tensile adhesion strength after freeze - thaw cycle: ≥ 0.5 N / mm2 (TS EN 1348)
Tensile adhesion strength after open holding time (after 30 minutes): ≥ 0.5 N / mm2 (TS EN 1346)
Slip: ≤ 0.5 mm (TS EN 1308)
Reaction to fire class: A1 (TS EN 13501 - 1)
These values are under laboratory conditions; It was obtained as a result of the experiments
carried out at 23 ± 2 ° C and P ± 5 relative humidity. The values given above may differ
depending on the surface and ambient conditions.
Application Limits
Pot life of the prepared mortar - Pot life: Maximum 3 hours
Working time: Maximum 30 minutes.
Correction time: 15 min.
Time required for joint application: 24 hours
Time required for the ground to open to traffic: 24 - 48 hours
These values are under laboratory conditions; It was obtained as a result of the experiments
carried out at 23 ± 2 ° C and P ± 5 relative humidity. The values given above may differ
depending on the surface and ambient conditions.
Technicial Specifications
a. Chemical Structure: Cement-based ceramic adhesive mortar
b. Dry Density: 1.30 ± 0.05 gr / cm3
c. Mortar Density: 1.85 ± 0.05 gr / cm3
D. Grain Size: ≤ 600 µm
to. Color: Gray, white
f. Temperature Resistance: between -15 ° C and + 80 ° C
Mixing ratio
It should be mixed with water at the rate of $ - 26 of its weight.
(6.0 - 6.5 liters of water for 25 kg packaging)
Consumption / Consumption
Ceramic sizes between 10x10 cm and 10x15 cm and smaller, with a 6x6x6 comb
Single sided bonding: 3.5 - 4.0 kg / m2
Double-sided adhesion: 5.0 - 5.5 kg / m2
Ceramic sizes from 10x15 to 25x40 cm, 10x15 to 33x33 cm, with 8x8x8 comb
Single sided adhesion: 4,5 - 5,0 kg / m2
Double sided bonding: 6,0 - 6,5 kg / m2
Ceramic sizes from 10x15 to 25x40 cm, from 10x15 to 33x33 cm, with a 10x10x10 comb
Single sided adhesion: 5,0 - 5,5 kg / m2
Double-sided bonding: 6,5 - 7,0 kg / m2
Packaging

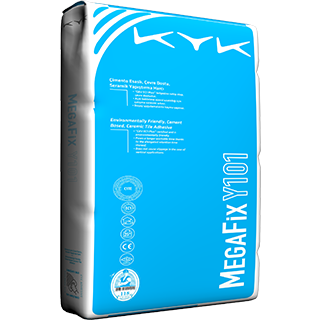

MegaFix; It is presented as a total of 54 bags (1350 kg) on a 80x100 cm sized pallet in craft bags of 25 kg net.
Reference Standards
a. Approvals / Standards
• TS EN 12004
CE
b. Public Works Look. Pos No.
• Public Works Look. Pos No .: 04.013 / 1
• Public Works Look. Pos No .: 04.013 / 4
QUALITY CERTIFICATES
• TSE
